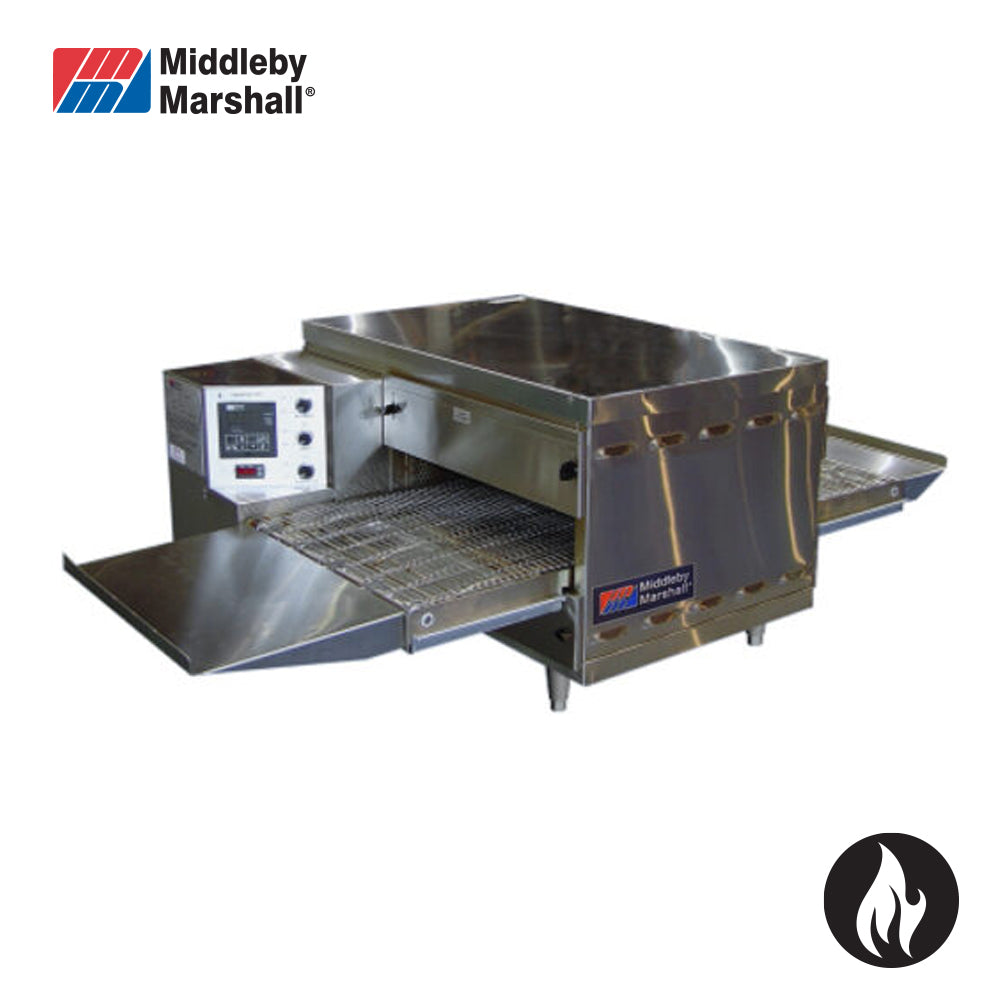

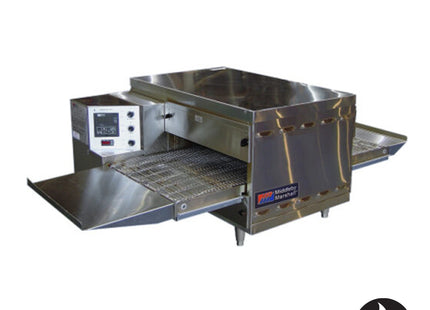

Middleby Marshall PS520 | Impingement Conveyor Oven

Middleby Marshall PS520 | Impingement Conveyor Oven

Product form

SKU: PS520E

Free pickup in our shop(s)

  • Guaranteed secure & safe checkout.

Description

The Middleby Marshall PS520 (PS2020E, PS2020G) is a commercial conveyor oven, available in electric or gas configurations, that bakes both faster and at a lower temperature than other ovens. Using patented vertical columns of hot air to move heat aerodynamically, it delivers rapid, consistent results without burning, and is designed to cook a multitude of products including pizza, seafood, sandwiches, bagels, ethnic foods and more.

 It can be configured as Single, Double, or Triple Stacked Units. For more information regarding Double and Triple Stacked Units call office.

Download Spec Sheet

Product Details

Vendor Group Middleby Marshall
Model Code PS520
Warranty 12 Months
Product Depth 951
Product Width 1367
Product Height 536

Specifications

  • Type: Electric / Natural Gas / Propane Gas
  • Bake Operating Temperature: 200° - 600°F (93° - 315°C)
  • Time Range: 30 seconds - 12½ minutes
  • Belt Length: 1067 mm
  • Baking Area: 0.23 m²
Features

20" (508mm) long cooking chamber with 18" (457mm) belt
42" (1067mm) long, 37.5" (953mm) deep, and 21.25" (540mm) high overall dimensions
Gas supply entrance pipe is ½" NPT
Furnished with 4" (102mm) legs
Stackable up to three high
Microprocessor-controlled bake time/conveyor speed
Stainless steel front, sides, top and interior
Reversible conveyor direction
12" (305mm) extension tray
One year parts and labor warranty
Use of a ventilation hood is required
Control compartment is designed for quick and easy access
Removable parts for easy cleaning (crumb pans, end panels, air fingers, exit tray, and a removable conveyor belt assembly)
Patented EMS provides efficient heat transfer to and from the product
Efficient heat transfer combined with streams of hot air means these ovens can cook a multitude of products in a fraction of the time
The top and front of the oven are insulated so they are cool to the touch
