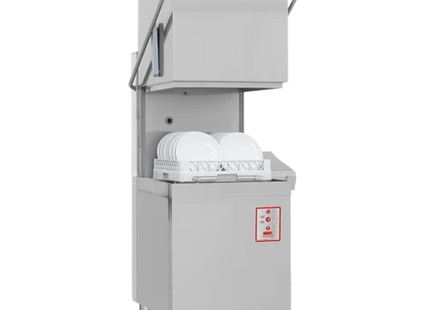

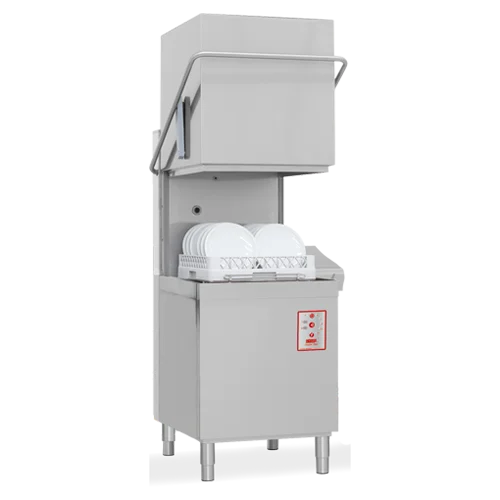

25-400-2R Madison IM20 Upright Commercial Dishwasher with Steam Condenser

25-400-2R Madison IM20 Upright Commercial Dishwasher with Steam Condenser

Product form

$13,500.00 $11,151.00 Excl. GST

    SKU: 25-400-2R

    Free pickup in our shop(s)

      • Place your order and we'll be in touch about delivery and installation.

      • Note: freight charges may apply and will be confirmed with you first.
      • Need support with finance for your purchase?

        No worries. Purchase your commercial kitchen equipment from KEV and choose a payment option that works for your business. At checkout, simply click through to our finance partner, SilverChef, to explore flexible rental and finance solutions.

        Get the equipment you need today and keep your cash flow working for you.

      Description

      The IM20 condenser model reduces condensation buildup in the kitchen while improving safety and comfort. Its condenser system helps reduce steam and energy consumption, while the IM20 platform can power through up to 1,000 plates per hour with automatic detergent injection and a smooth lifting hood.

      Warranty: 2 years parts and labour, 3 years on the control board & cabinet. Ask about a 4-year extended warranty.

      Download Spec Sheet

      Product Details

      Vendor Group Norris
      Model Code IM20 with S/S Heat Recovery System
      Warranty 2 years parts and labour, 3 years on the control board & cabinet Ask about a 4-year extended warranty
      Product Depth 818
      Product Width 725
      Product Height 1500
      Power Type 3+N (400V/50Hz)

      Specifications

      • Dimensions: Height (Cabinet inc. legs) 1500-1560 mm / Width (Cabinet inc. handle) 725 mm / Depth (Cabinet inc. handle) 818 mm
      • Amps: 20Amps/Ph
      • Phase: 3+N (400V/50Hz)
      • Warranty: Included
      Features

      Loads per Hour: up to 40*
      Water per Cycle: 2.7L
      Wash Cycle Options: 1, 2, 3 & 12 minute
      Wash Temp: 60 ºC
      Rinse Temp: 82 ºC
      Basket: Plate rack 500mm x 500mm / Flat Rack 500mm x 500mm
